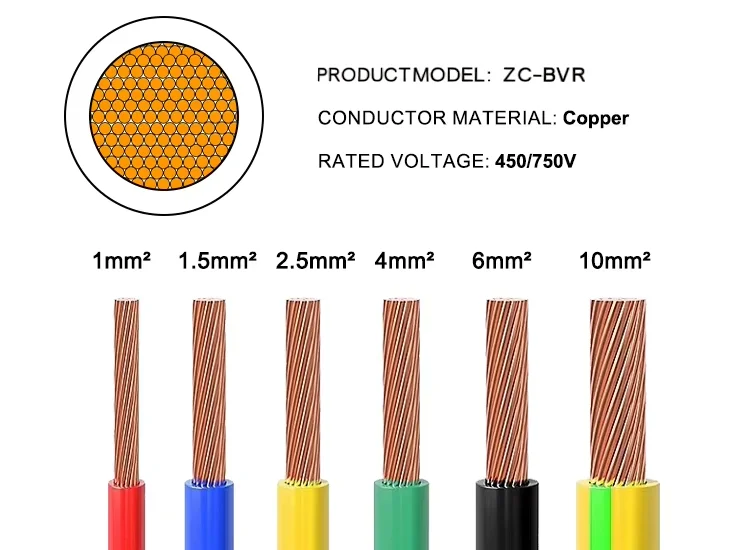

ZC‑BVR / H05V‑R / H07V‑R
Standards: GB/T 5023‑2008 / IEC 60227‑1

Product name:
Flame retardant flexible single‑core PVC insulated building wire

Rated Voltage:
300/500V (H05V‑R) / 450/750V (ZC‑BVR, H07V‑R)
Conductor: Oxygen‑free copper
Conductor Class: Class 2 stranded (IEC 60228)
Insulation: Flame retardant PVC, multi‑color available

Application:Public building wiring, fire safety flexible circuit laying

Inquiry

Description

Products Description

Product Highlights

Excellent flexibility:Due to the fact that conductors are made up of multiple strands of thin copper wire twisted together, they are easier to bend than hard wires (BV). In conduit or distribution boxes with many corners and limited space, the construction efficiency is extremely high, and it is not easy to damage the insulation layer due to forced bending.
Excellent flame retardant performance:With the prefix "ZC", it complies with the national Class C flame retardant standard. In the event of a fire, it can effectively suppress the spread of flames along electrical wires and quickly extinguish itself after evacuating the source of the fire.
Anti vibration and anti fatigue:The multi strand structure gives it stronger toughness and the ability to withstand mechanical vibrations. ZC-BVR is less prone to metal fatigue fracture and has higher reliability at some device connections with slight vibrations or power distribution parts that need to be moved.
More uniform current carrying capacity:Under the same cross-sectional area, the sum of the surface areas of multiple strands of filaments is greater than that of a single strand of hard core. Although the DC resistance is consistent, the multi strand structure has better physical adaptability when dealing with heat dissipation and complex current environments.
What is ZC-BVR wire?
BVR cable is a PVC insulated flexible copper wire designed for electrical installations that require flexibility and ease of installation.
ZC:Flame Retardant Class C(Chinese standard name)B: Insulated wire (Chinese standard name) V: PVC (polyvinyl chloride) insulation R: Soft copper wire (multi strand copper wire)Application scenariosBuilding wiring: Fixing circuits in residential, commercial, and industrial buildings that require flexibility. Distribution: wiring of distribution boards, switches, and sockets. Control system: Control wiring for mechanical equipment. Temporary installation: wiring and temporary power supply at the construction site.
Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated flame-retardant Class C wire
Insulating Material
XLPE
Conductor material
Oxygen-free copper   optional   Aluminium
Sheath Material
PVC sheath with flame retardant
Specification
1.5mm² — 400mm²
Rated Voltage
450V—750V   optional   300V—500V
Flame retardant level
National standard C-level
Insulation color
 As per request
Customization
Higher grade fire-resistant models can be selected according to the needs, with higher fire-resistant levels than flame retardant ones(NH-BVR)
Rated voltage
Nominal
cross-section
（mm²）
Toplimit
of
 overall diameter
Maximum DC resistance
at 20℃
(Ω/ km)
Minimum insulation resistance
(70℃ )
(MΩ/km)
Recommended value of carrying capacity
(A)













450/750V
1.5
3.4
13.3
0.010
25.4
2.5
4.1
7.98
0.009
34.5
4
4.8
4.95
0.007
44.5
6
5.3
3.30
0.006
58.3
10
6.8
1.91
0.0056
79.5
16
8.1
1.21
0.0046
111
25
10.2
0.780
0.0044
146
35
11.7
0.554
0.0038
180
50
13.9
0.386
0.0037
225
70
16.0
0.272
0.0032
280
