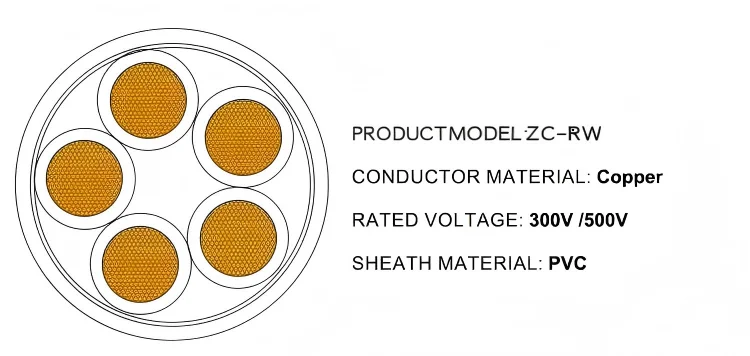

ZC-RVV / H03VV-F / H05VV-F
Standards: GB/T 5023-2008 / IEC 60227-5

Product name:
Flame retardant multi-core PVC insulated and sheathed flexible cable

Rated Voltage:
300/300V (H03VV-F) / 300/500V (ZC-RVV, H05VV-F)

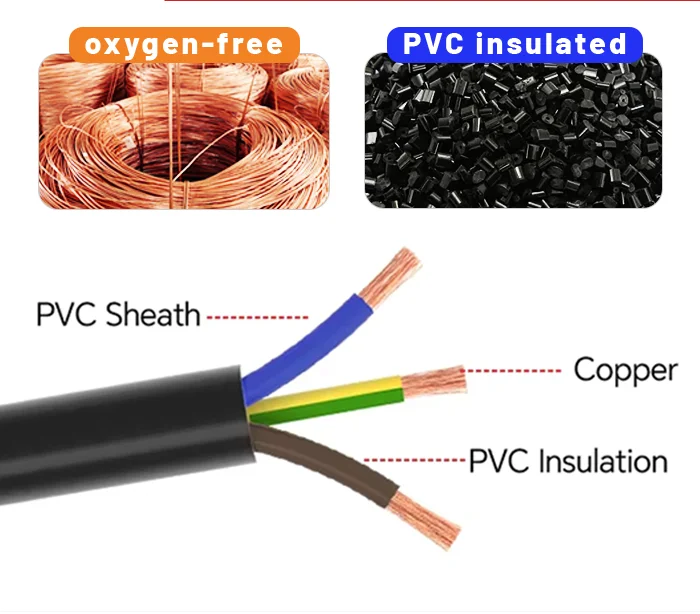

Conductor: Oxygen-free copper
Conductor Class: Class 5 flexible stranded (IEC 60228)
Insulation: Flame retardant PVC, multi-color available
Sheath: Flame retardant PVC outer sheath

Application: Fire engineering wiring, indoor safety power connection, electrical equipment wiring

Inquiry

Description

Products Description

Product Highlights

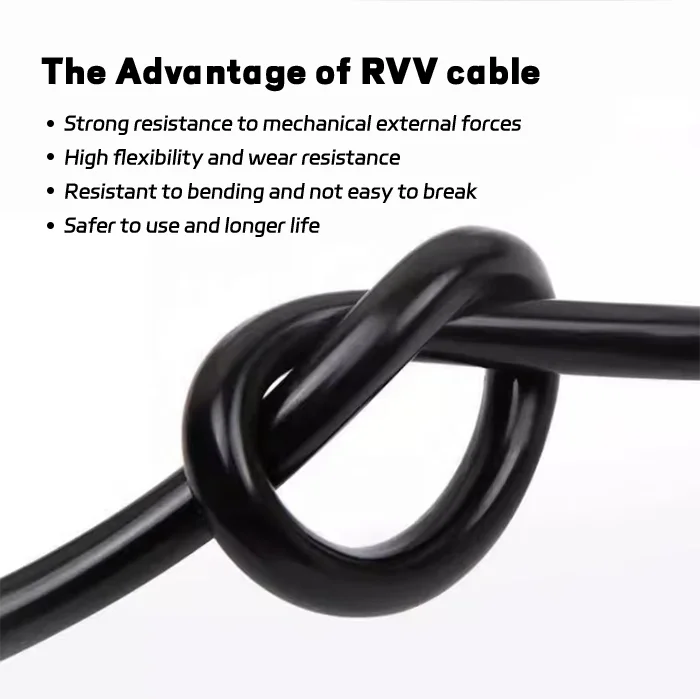

Excellent softness and flexibility:The RVV is made up of multiple strands of thin copper wire twisted inside, which is very soft and extremely easy to bend compared to hard BV cables. This characteristic makes it particularly suitable for use in narrow spaces, corners, or equipment that requires frequent movement and bending.

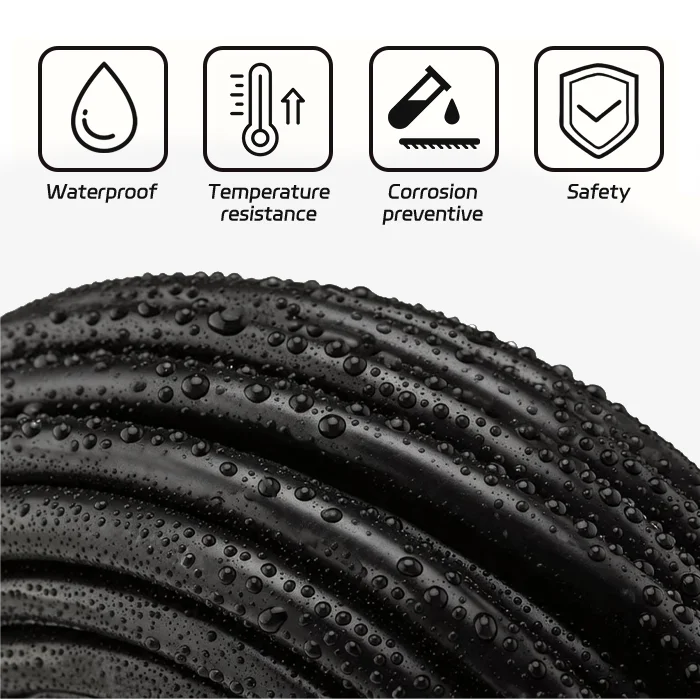

Double protection and high durability:RVV has dual PVC protection of inner insulation and outer sheath. The outer sheath (V) not only protects the internal insulation layer from mechanical damage, but also resists moisture, slight chemical corrosion, and natural aging in daily environments, extending its service life.
Safety and Economy:The protective layer greatly reduces the risk of leakage caused by insulation layer wear, and has higher safety. In large-scale security and light electrical engineering, RVV has relatively low production and installation costs while ensuring performance.
Excellent fire safety:Ordinary RVV cables will quickly burn and propagate along the cable when exposed to fire, while ZC-RVV uses flame-retardant polyvinyl chloride (PVC) material. After the fire source is evacuated, the cable can automatically extinguish and will not become a channel for the spread of fire.
What is ZC-RVV wire?
RVV cable is a flexible PVC insulated and sheathed multi-purpose cable with stranded copper conductors, widely used in power.Transmission, control wiring, and indoor electrical connections in residential, commercial, and light industrial applications.
The name RVV comes from the designated standard for international cables.

ZC:Flame Retardant Class C(Chinese standard name)
R:Flexible wire (twisted multiple strands of thin copper wire)V: PVC (polyvinyl chloride) insulation V: Soft copper wire (multi strand copper wire)Application scenariosHousehold appliances: power cords for washing machines, air conditioners, and refrigerators. Building wiring: lighting circuits, socket extensions, and low-voltage control systems. Commercial use: power connections for office equipment, signage, and temporary installations. Light industry control: mechanical wiring, conveyor systems, automation equipment.
Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated PVC sheathed flame-retardant C-grade flexible cable
Insulating Material
PVC
Conductor material
Oxygen-free copper
Sheath Material
PVC sheath with flame retardant
Specification

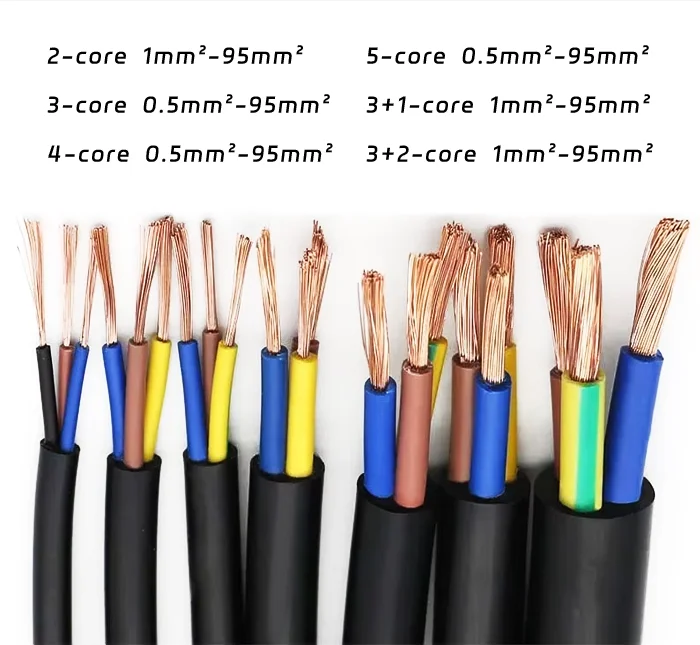

0.5mm² — 95mm²
Adapt to voltage
Uo/U 300/500V  300/300V
Flame retardant level
National standard C-level

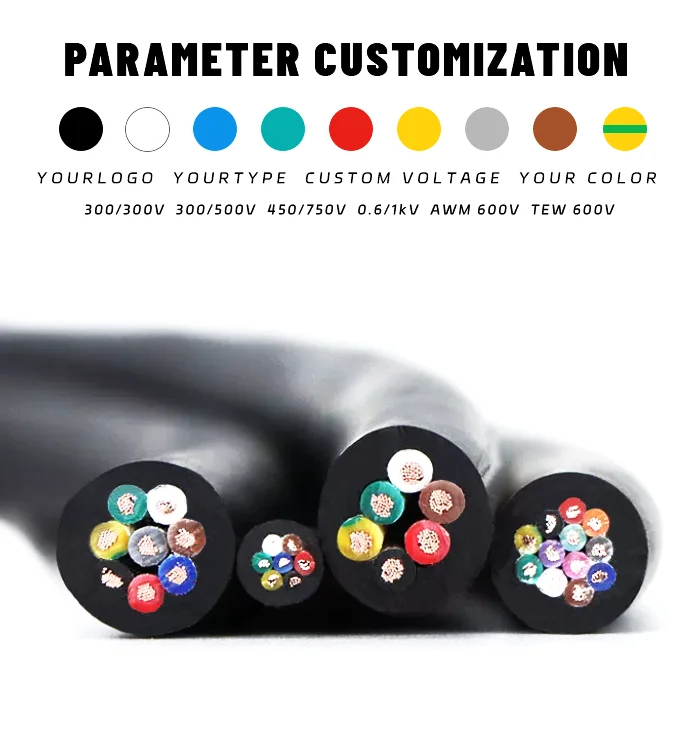

Customization
Higher grade fire-resistant models can be selected according to the needs, with higher fire-resistant levels than flame retardant ones(NH-RVV)
GB/T5023 IEC60227 RVV 300/500V
Nominal
cross-section
(mm²)
Conductor DiameterOne-Core (mm)
Conductor Diameter7-Core (mm)
Conductor Diameter Muti-Core
(mm)
Overall Diameter
(mm)
2×0.5mm²
0.80/1*2
0.30/7*2
0.15/28*2
7.6/7.9
2×0.75mm²
0.97/1*2
0.37/7*2
0.15/42*2
7.9/8.2
2×1.0mm²
1.13/1*2
0.43/7*2
0.20/32*2
8.2/8.5
2×1.5mm²
1.38/1*2
0.52/7*2
0.20/48*2
8.7/9.1
2×2.5mm²
1.78/1*2
0.68/7*2
0.20/78*2
9.9/10.4
2×4mm²
2.25/1*2
0.85/7*2
0.25/80*2
10.9/11.5
2×6mm²
2.76/1*2
1.04/7*2
0.30/84*2
11.9/12.6
2×10mm²
3.58/1*2
1.35/7*2
0.40/50*2
15.1/16.1
3×0.5mm²
0.80/1*3
0.30/7*3
0.15/28*3
5.8
3×0.75mm²
0.97/1*3
0.37/7*3
0.20/42*3
6.8
3×1.0mm²
1.13/1*3
0.43/7*3
0.20/32*3
8
3×1.5mm²
1.38/1*3
0.52/7*3
0.20/48*3
9.1/9.5
3×2.5mm²
1.78/1*3
0.68/7*3
0.20/78*3
10.4/11.0
3×4mm²
2.25/1*3
0.85/7*3
0.25/80*3
11.4/12.1
3×6mm²
2.76/1*3
1.04/7*3
0.30/84*3
3.0/13.7
3×10mm²
3.58/1*3
1.35/7*3
0.40/50*3
16.0/17.0
4×1.5mm²
1.38/1*4
0.52/7*4
0.20/48*4
9.9/10.3
4×2.5mm²
1.78/1*4
0.68/7*4
0.20/78*4
11.3/11.9
4×4mm²
2.25/1*4
0.85/7*4
0.25/84*4
12.8/13.6
4×6mm²
2.76/1*4
1.04/7*4
0.30/84*4
14.5/15.3
4×10mm²
3.58/1*4
1.35/7*4
0.40/50*4
17.4/18.6
5×1.5mm²
1.38/1*5
0.52/7*5
0.20/48*5
10.7/11.1
5×2.5mm²
1.78/1*5
0.68/7*5
0.20/78*5
12.3/13.0
5×4mm²
2.25/1*5
0.85/7*5
0.25/80*5
14.4/15.2
5×6mm²
2.76/1*5
1.04/7*5
0.30/84*5
15.7/16.7
5×10mm²
3.58/1*5
1.35/7*5
0.40/50*5
19.0/20.3
Product Details
Company Profile
Guangxi Jinlongxing Cable Group Co., Ltd. is a national innovative technology cable enterprise located in the core area of the Guangxi Fusui ASEAN Economic Circle. We have been deeply involved in the industry for 21 years, with a modern industrial park of over 20000 square meters, forming an integrated manufacturing system for research and development, production, and testing.The company specializes in a full range of copper and aluminum core cables, covering distributed wires, power, control, mineral insulation, and flame-retardant and fire-resistant special cables, covering all voltage levels of 35kV and below, and can provide complete cable matching solutions.The enterprise is equipped with intelligent production lines and professional testing centers, with full process quality control,ISO system certification, multiple patents, and authoritative certifications such as 3C and CB at home and abroad. The products comply with national standards and IEC international standards. Relying on its location advantage, the product is popular inSoutheast Asia and widely used in infrastructure, industrial, and civil construction fields.
Company Honors and Certificates
FAQ

Q:Are you a manufacture or trading company？

A:We are a professional manufacturer. We can control your order from start to finish. Welcome to collaborate. We will pick you up in Nanning, Guangxi.

Q:How can I get a sample to test your quallty?

A:The samples are free, and you only need to pay for the shipping fee.

Q:What's your MInimum Order Quantity?

A:Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the highfreight. Sea
transportation is the best option.

Q:Can I get a discount?

A:It depends on your quantity, we can offer a discount. Please contact us.

Q:Do you provide OEM project services?

A:We warmly welcome OEM and ODM cooperation and have mature experience in customized projects. Our professional R&D team can provide technical solutions and customized suggestions according to your needs.

Q:What about the delivery time, packaging method, and transportation method after payment?

A:Mode of transportation:
You can choose sea freight, alr freight, or international express delivery. International express delivery supports DFedEx,
UPS,TNT, etc. You can choose the most suitable channel on your own.

Packaging method: Adopting standard export packaging. moisture-proof and pressure resistant, sturdy and durable, meeting
internationallogistics requirements Simuttaneously supporting customized packaging (ogo, identification, outer box
specifications,etc).

Delivery cycle:
Sample: 1-3 days
Small orders: 3 to 10 days
Large orders: 10 to 18 days
The overall delivery time is generally10-20 days, depending on the order quantity, production schedule, and product
specifications.
