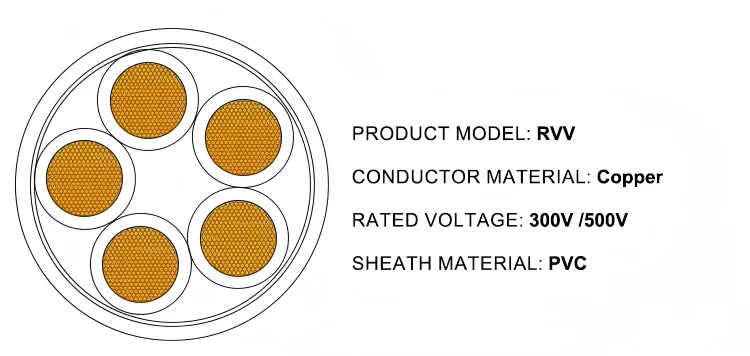

RVV / H03VV-F / H05VV-F
Standards: GB/T 5023-2008 / IEC 60227-5

Product name:
Multi-core PVC insulated and sheathed flexible cable

Rated Voltage:
300/300V (H03VV-F) / 300/500V (RVV, H05VV-F)
Conductor: Oxygen-free copper
Conductor Class: Class 5 flexible stranded (IEC 60228)
Insulation: PVC, multi-color available
Sheath: PVC outer sheath

Application: Household electrical connection, equipment wiring, power extension line

Inquiry

Description

Products Description

Product Highlights

Multi strand thin copper wire structure:The RVV is made up of multiple strands of thin copper wire twisted inside, which is very soft and extremely easy to bend compared to hard BV cables.
Adapt to complex wiring:This characteristic makes it particularly suitable for use in narrow spaces, corners, or equipment that requires frequent movement and bending.
Double layer protection:RVV has dual PVC protection of inner insulation and outer sheath.
Aging and corrosion resistance:The outer sheath (V) not only protects the internal insulation layer from mechanical damage, but also resists moisture, slight chemical corrosion, and natural aging in daily environments, extending its service life.
Anti electric shock protection:The protective layer greatly reduces the risk of leakage caused by insulation layer wear, and has higher safety.
High cost-effectiveness:In large-scale security and light electrical engineering, RVV has relatively low production and installation costs while ensuring performance.
What is RVV wire?
RVV cable is a flexible PVC insulated and sheathed multi-purpose cable with stranded copper conductors, widely used in power.Transmission, control wiring, and indoor electrical connections in residential, commercial, and light industrial applications.
The name RVV comes from the designated standard for international cables.

R:Flexible wire (twisted multiple strands of thin copper wire)V: PVC (polyvinyl chloride) insulation V: Soft copper wire (multi strand copper wire)Application scenariosHousehold appliances: power cords for washing machines, air conditioners, and refrigerators. Building wiring: lighting circuits, socket extensions, and low-voltage control systems. Commercial use: power connections for office equipment, signage, and temporary installations. Light industry control: mechanical wiring, conveyor systems, automation equipment.
Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated PVC sheathed flexible cable
Insulating Material
PVC
Conductor material
Oxygen-free copper
Sheath Material
PVC
Specification
0.5mm² — 95mm²
Adapt to voltage
Uo/U 300/500V  300/300V
Customization
Flame retardant and fire-resistant types with better protection levels can be selected according to needs(ZC-RVV or NH-RVV)
GB/T5023   IEC60227   RVV   300/500V
Nominal
cross-section
(mm²)
Insulation
Nominal
Thickness
（mm）
Sheath Outer
Diameter
（mm）
Upper limit
of O.D
(mm)
Min.insulation resistance
at 70℃
（Ω/km）
Max.D.C
resistance
at 20℃
（Ω/km）
Recommend current
capacity
（A）
2×0.75
0.6
0.8
7.6
26
0.0011
13
2×1
0.6
0.8
8.0
19.5
0.010
15
2×1.5
0.7
0.8
9.0
13.3
0.010
20
2×2.5
0.8
1
11.0
7.98
0.009
28
3×0.75
0.6
0.8
8.0
26
0.011
10
3×1
0.6
0.8
8.4
19.5
0.010
12
3×1.5
0.7
0.9
9.8
13.3
0.010
18
3×2.5
0.8
1
12.0
7.98
0.009
24
4×0.75
0.6
0.8
8.6
26
0.011
10
4×1
0.6
0.9
9.4
19.5
0.010
12
4×1.5
0.7
1
11.0
13.
0.010
15
4×2.5
0.8
1.1
13.0
7.98
0.009
20
5×0.75
0.6
0.9
9.6
26
0.011
10
5×1
0.6
0.9
10.0
19.5
0.010
12
5×1.5
0.7
1.1
12.0
13.3
0.010
15
5×2.5
0.8
1.2
14.0
7.98
0.009
20
2×4
0.8
1.1
12.4
4.95
0.007
20
2×6
0.8
1.1
15.4
3.3
0.006
38
3×4
0.8
1.2
13.5
4.94
0.007
50
3×6
0.8
1.2
16.4
3.3
0.006
32
4×4
0.8
1.2
14.6
4.95
0.007
23
4×6
0.8
1.3
18.2
3.3
0.006
30
5×4
0.8
1.4
16.5
4.95
0.007
26
5×6
0.8
1.4
20.2
3.3
0.006
35
3×1.5+1×1
0.7/0.6
1
11
13.3/19.5
0.010/0.010
14
3×2.5+1×1.5
0.8/0.7
1.1
13.1
7.98/13.3
0.009/0.010
19
3×4+1×2.5
0.8/0.8
1.2
14.1
4.95/7.98
0.007/0.009
26
3×6+1×4
0.8/0.8
1.3
17.9
3.3/4.95
0.006/0.007
35
3×1.5+2×1
0.7/0.6
1.1
12.1
13.3/19.5
0.010/0.010
18
3×2.5+2×1.5
0.8/0.7
1.2
14.2
7.98/13.3
0.009/0.010
25
3×4+2×2.5
0.8/0.8
1.2
15.7
4.95/7.98
0.007/0.009
35
3×6+2×4
0.8/0.8
1.4
20
3.3/4.95
0.006/0.007
45

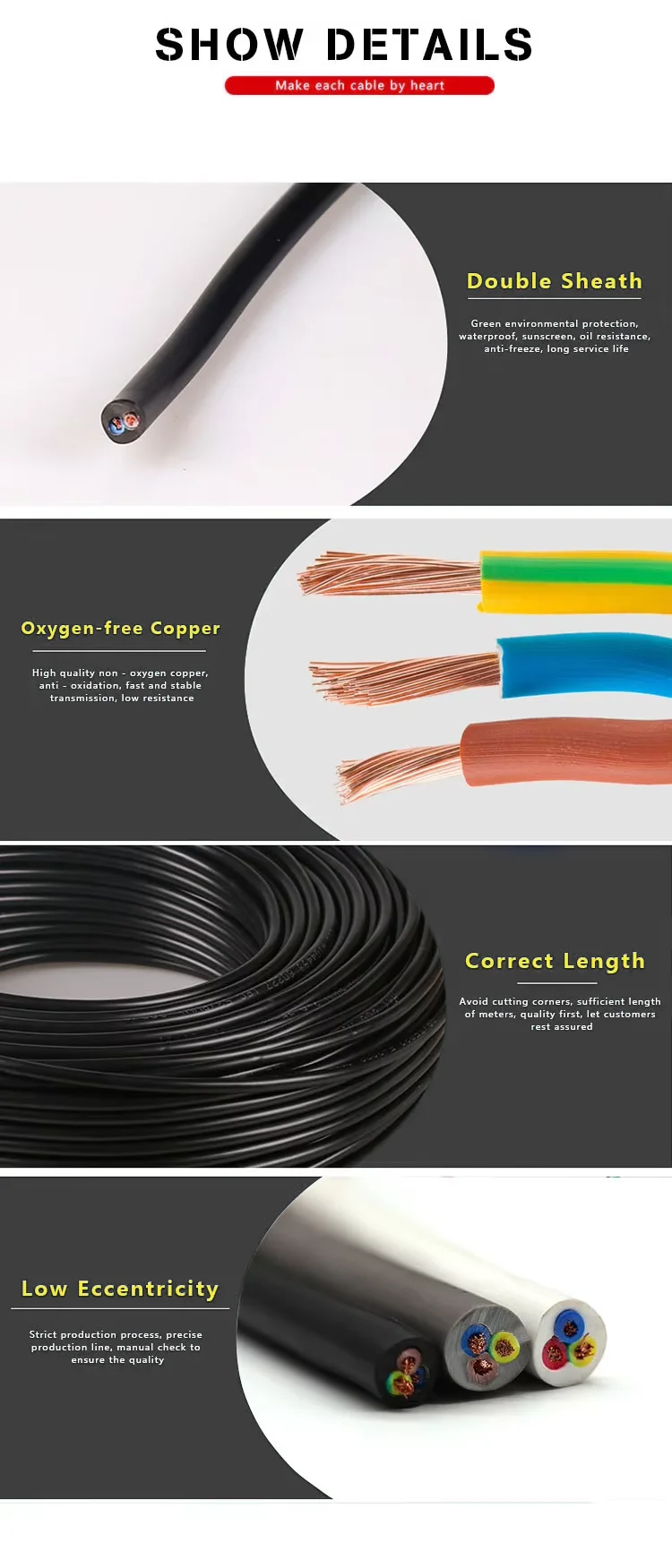

Product Details
