BV / H05V-U / H07V-U
Standards: GB/T 5023-2008 / IEC 60227-1

Product name:
Single-core PVC insulated building wire

Rated Voltage:
300/500V (H05V‑U) / 450/750V (BV, H07V‑U)

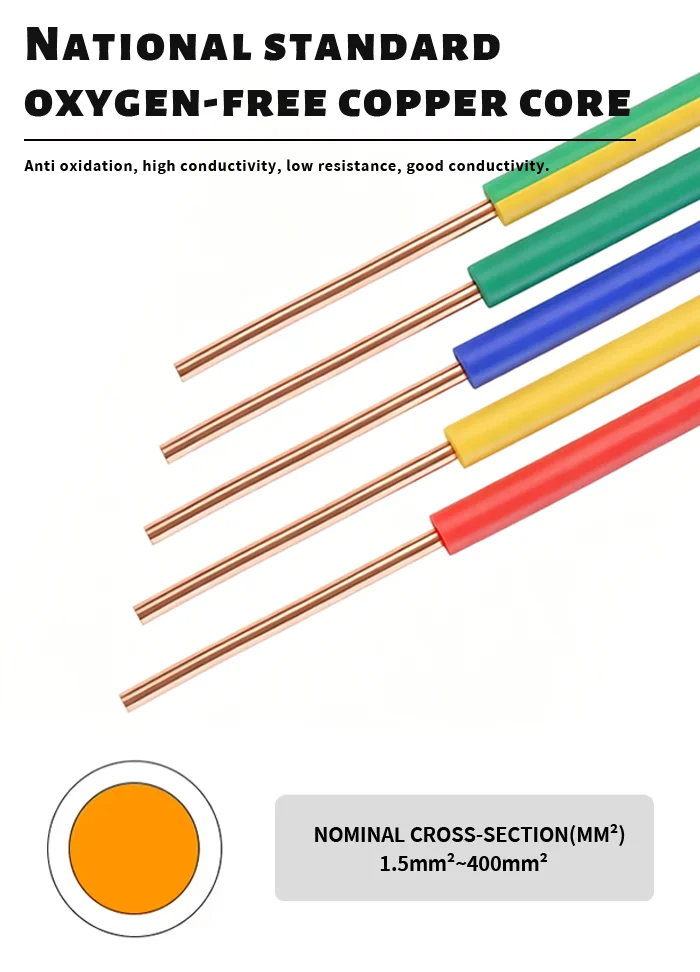

Conductor: Oxygen-free copper
Conductor Class: Class 1 solid (IEC 60228)

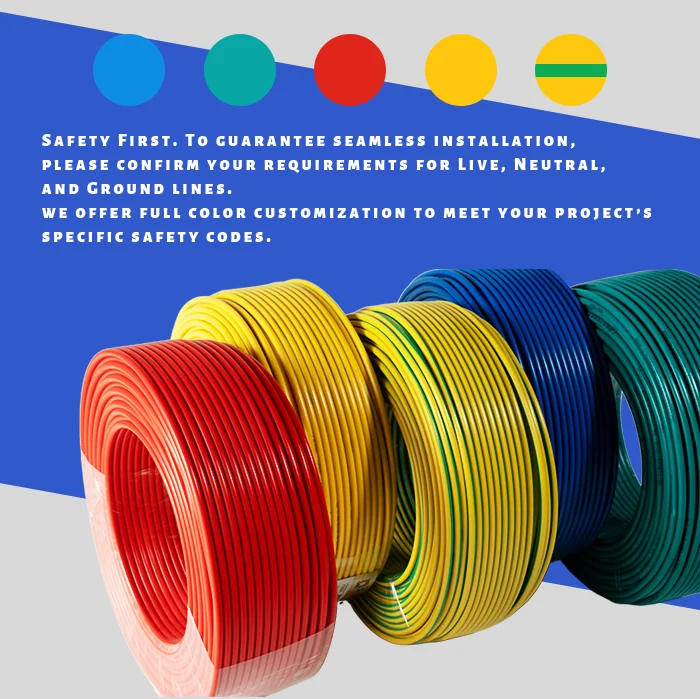

Insulation: PVC, multi-color available

Application:Indoor fixed wiring, residential and commercial power wiring

Inquiry

Description

Products Description

Product Highlights

Excellent mechanical strength:A single solid copper core ensures excellent resistance to external pressure and wear, making it an ideal choice for fixed concealed installations.
High Oxidation Resistance:Pure oxygen free copper wire has stable conductivity, which can prevent oxidation and extend its service life.
Cost-Effective Solution:More economical than BVR flexible cords, it is an economical and efficient solution for large-scale electrical installation projects.
Standardized Insulation Performance:High quality PVC insulation meets national standards and has excellent voltage resistance and conductivity.
Stable Current-Carrying Capacity :Uniform conductor cross-section guarantees consistent current transmission, avoiding overheating in long-term use.
Easy Maintenance and Inspection:The rigid core structure makes wiring clearer and simplifies troubleshooting and maintenance.
Reliable contact surface:When connecting switches, sockets, or circuit breakers, the solid copper core is directly inserted into the wiring hole and tightened by screws, ensuring a stable contact area.

What is BV wire?

BV wire is a PVC insulated single core hard copper wire, which is the most commonly used basic wire in home decoration and engineering. It has the characteristics of economic efficiency, easy installation, and high reliability, and is widely used in fixed electrical installations such as buildings and power systems.
Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated wire
Conductor material
Oxygen-free copper
Sheath Material
PVC
Specification
1.5mm² — 400mm²
Rated Voltage
450/750V
Max. operating temperature
70°C (90°C is available)
Max. short circuit operating
temperature in 5s
160℃
Min. lay temperature
0℃
Min. bending radius
4D (cable outer diameter D <25mm),6D(cable outer diameter D≥25mm)
Insulation color
 As per request
Customization
Flame retardancy and fire resistance can be selected according to needs
Nominal cross
section
(mm²)
Conductor type
Insulation
thickness
Approximate
 total
diameter
(mm)
Approximate weight
(kg/km)

Max. DC  conductor
resistance
 at 20 ° C
(Ω/km)
Minimum insulation resistance
(MΩ/km)
In Air current ratings at
25℃
（A）
1×1.5
Class 1
0.7
2.8
19.5
12.1
0.011
25
1×2.5
Class 1
0.8
3.3
30.4
7.41
0.010
34
1×4
Class 1
0.8
3.8
45.4
4.61
0.0085
45
1×6
Class 1
0.8
4.3
64.5
3.08
0.0070
58
1×10
Class 2
1.0
6.0
109.3
1.83
0.0065
80
1×16
Class 2
1.0
7.0
165.7
1.15
0.0050
111
1×25
Class 2
1.2
8.7
259.1
0.727
0.0050
155
1×35
Class 2
1.2
9.8
348.3
0.524
0.0043
192
1×50
Class 2
1.4
11.6
474.5
0.387
0.0043
232
1×70
Class 2
1.4
13.4
671.2
0.268
0.0035
298
1×95
Class 2
1.6
15.7
930.4
0.193
0.0035
362
1×120
Class 2
1.6
17.3
1161.5
0.153
0.0032
420
1×150
Class 2
1.8
19.2
1437.9
0.124
0.0032
484
1×185
Class 2
2.0
21.5
1797.8
0.0991
0.0032
553
1×240
Class 2
2.2
24.5
2360.6
0.0754
0.0032
652
1×300
Class 2
2.4
27.3
2934.8
0.0601
0.0030
752
1×400
Class 2
2.6
30.9
3809.4
0.047
0.0028
904

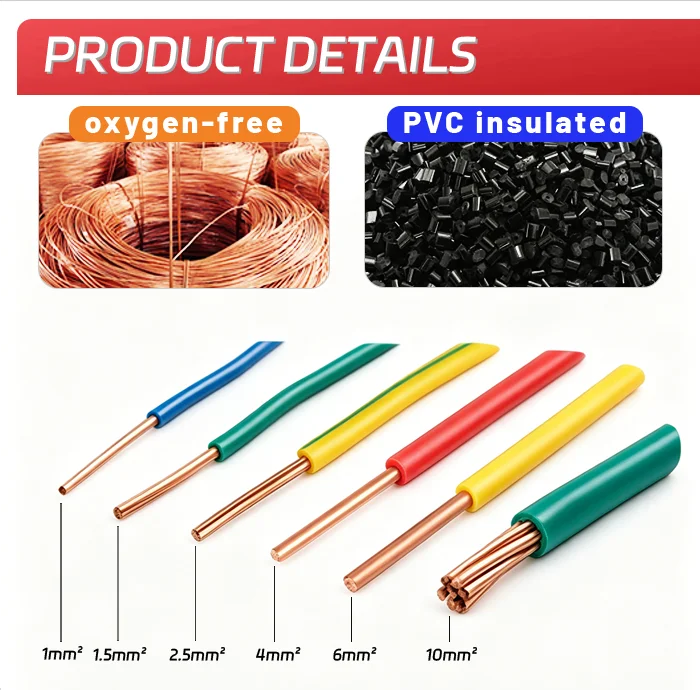

Product Details

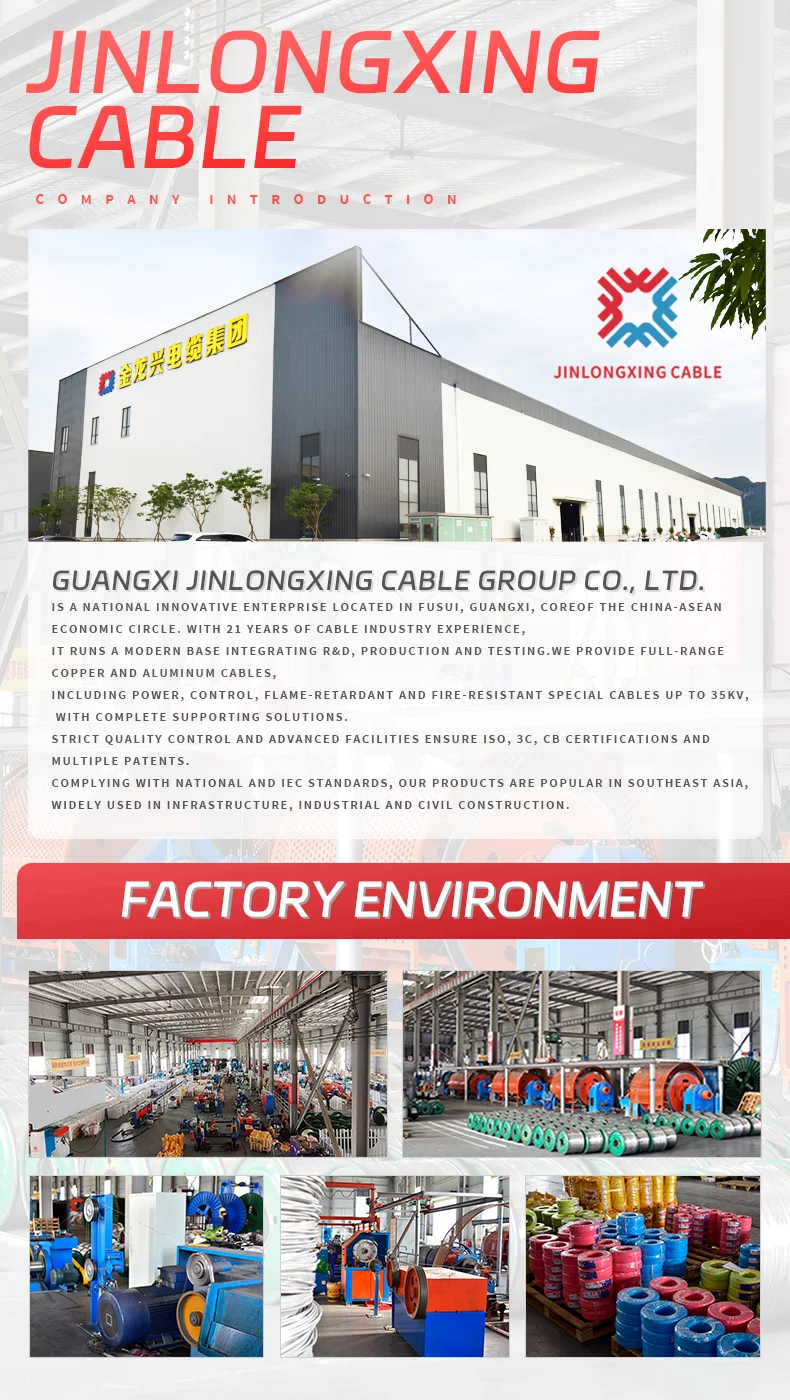

Company Profile
Company Honors and Certificates
FAQ

Q:Are you a manufacture or trading company？

A:We are a professional manufacturer. We can control your order from start to finish. Welcome to collaborate. We will pick you up in Nanning, Guangxi.

Q:How can I get a sample to test your quallty?

A:The samples are free, and you only need to pay for the shipping fee.

Q:What's your MInimum Order Quantity?

A:Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the highfreight. Sea
transportation is the best option.

Q:Can I get a discount?

A:It depends on your quantity, we can offer a discount. Please contact us.

Q:Do you provide OEM project services?

A:We warmly welcome OEM and ODM cooperation and have mature experience in customized projects. Our professional R&D team can provide technical solutions and customized suggestions according to your needs.

Q:What about the delivery time, packaging method, and transportation method after payment?

A:Mode of transportation:
You can choose sea freight, alr freight, or international express delivery. International express delivery supports DFedEx, UPS,TNT, etc. You can choose the most suitable channel on your own.

Packaging method: Adopting standard export packaging. moisture-proof and pressure resistant, sturdy and durable, meeting internationallogistics requirements Simuttaneously supporting customized packaging (ogo, identification, outer box specifications,etc).

Delivery cycle:
Sample: 1-3 days
Small orders: 3 to 10 days
Large orders: 10 to 18 days
The overall delivery time is generally10-20 days, depending on the order quantity, production schedule, and product
specifications.
